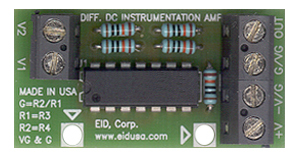

INTERFACERDFO1. Differential Operation Amplifier interface board.



The INTERFACER-DFO1 board is designed to convert differential input voltages into output voltage. If used properly, it will eliminate the need for expensive boards, which would otherwise be needed to carry out the same tasks.



The INTERFACER-DFO1  is easy to install, setup and operate. If you want to do professional voltage measurement related functions, the INTERFACER-DFO1 offers the features you need. Mounted easily via two 0.125" mounting holes.



Simply connect the board to +5 to 15 VDC or +/-5to 15 VDC Connect your inputs voltage signal and our board will convert it to voltage that is equal to the different voltages of those inputs.



The board can be easily modified for different input voltage and output voltage ranges.



Model A with gain Adj.



Model B without gain Adj.

INTERFACER – DFO1 Features



  • Can be customized to accommodate your gain requirement.

  • Input to  output voltage gain is adjusted via trimmer.

  • Also, designed to operate from 12VDC car battery.

Specifications

  • Input Impedance                      >10K Ohms

  • Output voltage (standard)          0.4VDC < VCC-VSS

  • PCB material                             FR4 (UL approved)

  • Max power consumption              0.5W

  • Storage temperature                  40 - 70   [F]

  • Operating temperature                32 - 140 [F] (0 to 60°C) @ 95% RH

  • Power source                            5 to 15VDC +/-3%, or +/- 5 to 15VDC +/-3%

  • Gain Adjustment                        Via multi turn trimmer (standard)

  • Mounting                                 Two 0.125” holes

  • Manufactured                            100% in USA
