Isolation AC Power Supply Type Transformers board with Terminal Blocks.
The
board utilized the EID-162 & 164 Low voltage P.C. board mount
low profile transformers. This dual/single secondaries outputs
isolated AC Power supply designed to provide VAC isolated
outputs, for Powering peripheral devices. the Board is available
with 110VAC or 220VAC primaries.
Key
Features:
-
20
output voltages to choose from (5 - 120VAC R.M.S.)
-
Input/Output
via Terminal Blocks
-
Six
VA size models available from - 1.1 to 36VA
-
Both
series operate on 50/60 Hz current
-
Low
profile, split bobbin design.
-
Dual
winding secondaries, non-concentrically wound
-
Low
primary to secondary coupling - no electrostatic
shield required.
-
Choice
of economical single primary 115V (EID-164 series)
or universal dual primary 115/230V (EID-162 series) - either
model 50/60 Hz operation.
-
One
year warranty
-
High
insulation - Hipot of 2,500V RMS.
-
Class
B insulation - 130 degrees C.
-
No
mounting hardware required on 1.1 and 2.4 VA
sizes, two hole mounting on 6, 12 and 20VA sizes, four
hole mounting on 36VA size (mounting screws not
provided). P.C. board mount with industry standard pin
spacing.
-
CSA
certified (# LR3902) and UL recognized (# E50394).
Pictures
Models P# EID-16NNNYXXXX-IPSB Where;
N = 162 or 164
Y = D or E
XXXX = Secondary Voltage or PCBA for PCB only

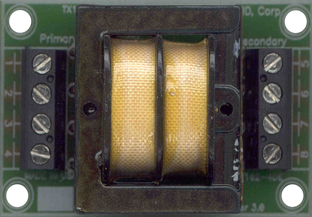

(D)

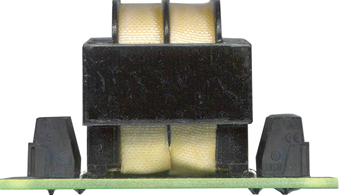

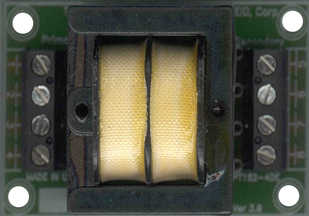

(E)

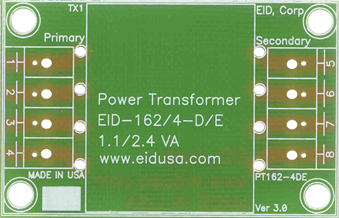

(PCB only P# EID-16NNNYPCBA-IPSB)

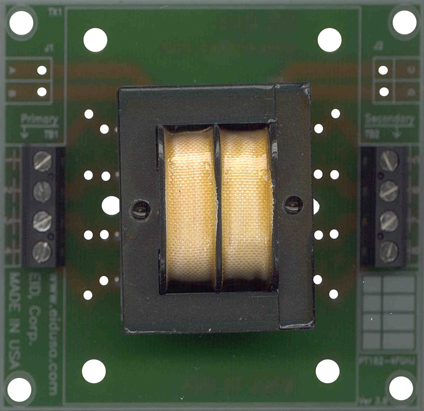

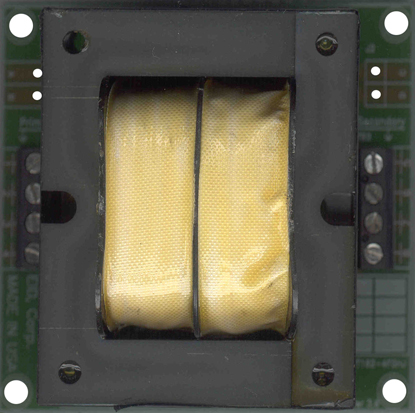

Pictures
Models P# EID-16NNNYXXXX-IPSB Where;
N = 162 or 164
Y = F, G, H or J
XXXX = Secondary Voltage or PCBB for PCB only

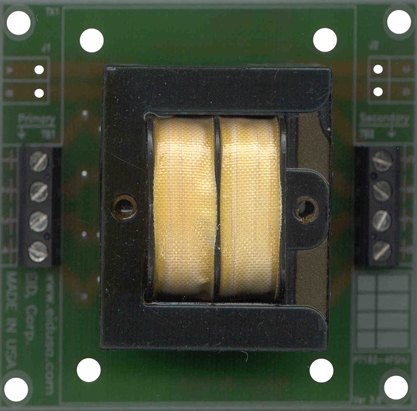

(F)
(G)

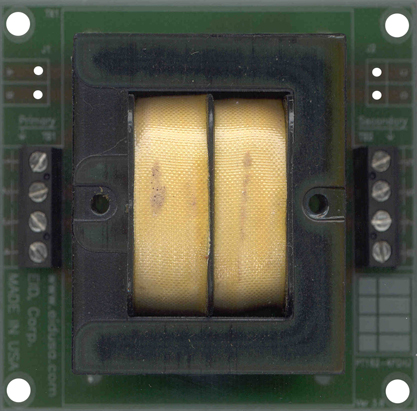

(H)
(J)

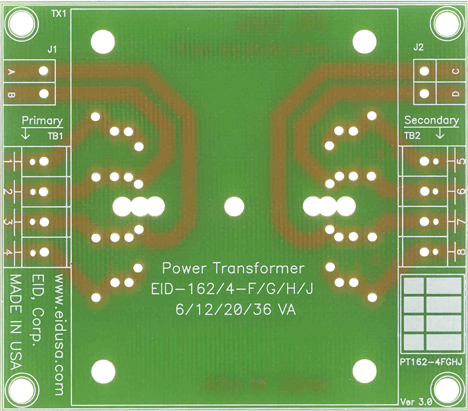

(PCB
only P# EID-16NNNYPCBB-IPSB)
Key
Features:
-
20
output voltages to choose from (5 - 120VAC R.M.S.)
-
Input/Output
via Terminal Blocks
-
Six
VA size models available from - 1.1 to 36VA
-
Both
series operate on 50/60 Hz current
-
Low
profile, split bobbin design.
-
Dual
winding secondaries, non-concentrically wound
-
Low
primary to secondary coupling - no electrostatic
shield required.
-
Choice
of economical single primary 115V (EID-164 series)
or universal dual primary 115/230V (EID-162 series) - either
model 50/60 Hz operation.
-
One
year warranty
-
High
insulation - Hipot of 2,500V RMS.
-
Class
B insulation - 130 degrees C.
-
No
mounting hardware required on 1.1 and 2.4 VA
sizes, two hole mounting on 6, 12 and 20VA sizes, four
hole mounting on 36VA size (mounting screws not
provided). P.C. board mount with industry standard pin
spacing.
-
CSA
certified (# LR3902) and UL recognized (# E50394).
EID-162/4
Power Transformer table:
|
P#
Single Pri.
115V
|
P#.
Dual Pri.
115/230V
|
Size
VA
|
Secondary
(RMS)
|
|
Series
|
Parallel
|
|
EID-164D10
|
EID-162D10
|
1.1
|
10V
C.T. @ .11A
|
5V
@ .22A
|
|
EID-164E10
|
EID-162E10
|
2.4
|
10V
C.T. @ .25A
|
5V
@ .5A
|
|
EID-164F10
|
EID-162F10
|
6
|
10V
C.T. @ .6A
|
5V
@ 1.2A
|
|
EID-164G10
|
EID-162G10
|
12
|
10V
C.T. @ 1.2A
|
5V
@ 2.4A
|
|
EID-164H10
|
EID-162H10
|
20
|
10V
C.T. @ 2A
|
5V
@ 4.0A
|
|
EID-164J10
|
EID-162J10
|
36
|
10V
C.T. @ 3.6A
|
5V
@ 7.2A
|
|
EID-164D12
|
EID-162D12
|
1.1
|
12.6V
C.T. @ .09A
|
6.3V
@ .18A
|
|
EID-164E12
|
EID-162E12
|
2.4
|
12.6V
C.T. @ .2A
|
6.3V
@ .4A
|
|
EID-164F12
|
EID-162F12
|
6
|
12.6V
C.T. @ .5A
|
6.3V
@ 1.0A
|
|
EID-164G12
|
EID-162G12
|
12
|
12.6V
C.T. @ 1.0A
|
6.3V
@ 2.0A
|
|
EID-164H12
|
EID-162H12
|
20
|
12.6V
C.T. @ 1.6A
|
6.3V
@ 3.2A
|
|
EID-164J12
|
EID-162J12
|
36
|
12.6V
C.T. @ 2.85A
|
6.3V
@ 5.7A
|
|
EID-164D16
|
EID-162D16
|
1.1
|
16V
C.T. @ .07A
|
8V
@ .14A
|
|
EID-164E16
|
EID-162E16
|
2.4
|
16V
C.T. @ .15A
|
8V
@ .3A
|
|
EID-164F16
|
EID-162F16
|
6
|
16V
C.T. @ .4A
|
8V
@ .8A
|
|
EID-164G16
|
EID-162G16
|
12
|
16V
C.T. @ .8A
|
8V
@ 1.6A
|
|
EID-164H16
|
EID-162H16
|
20
|
16V
C.T. @ 1.25A
|
8V
@ 2.5A
|
|
EID-164J16
|
EID-162J16
|
36
|
16V
C.T. @ 2.25A
|
8V
@ 4.5A
|
|
EID-164D20
|
EID-162D20
|
1.1
|
20V
C.T. @ .055A
|
10V
@ .11A
|
|
EID-164E20
|
EID-162E20
|
2.4
|
20V
C.T. @ .12A
|
10V
@ .24A
|
|
EID-164F20
|
EID-162F20
|
6
|
20V
C.T. @ .3A
|
10V
@ .6A
|
|
EID-164G20
|
EID-162G20
|
12
|
20V
C.T. @ .6A
|
10V
@ 1.2A
|
|
EID-164H20
|
EID-162H20
|
20
|
20V
C.T. @ 1A
|
10V
@ 2.0A
|
|
EID-164J20
|
EID-162J20
|
36
|
20V
C.T. @ 1.8A
|
10V
@ 3.6A
|
|
EID-164D24
|
EID-162D24
|
1.1
|
24V
C.T. @ .045A
|
12V
@ .09A
|
|
EID-164E24
|
EID-162E24
|
2.4
|
24V
C.T. @ .1A
|
12V
@ .2A
|
|
EID-164F24
|
EID-162F24
|
6
|
24V
C.T. @ .25A
|
12V
@ .5A
|
|
EID-164G24
|
EID-162G24
|
12
|
24V
C.T. @ .5A
|
12V
@ 1.0A
|
|
EID-164H24
|
EID-162H24
|
20
|
24V
C.T. @ .8A
|
12V
@ 1.6A
|
|
EID-164J24
|
EID-162J24
|
36
|
24V
C.T. @ 1.5A
|
12V
@ 3.0A
|
|
EID-164D28
|
EID-162D28
|
1.1
|
28V
C.T. @ .04A
|
14V
@ .08A
|
|
EID-164E28
|
EID-162E28
|
2.4
|
28V
C.T. @ .085A
|
14V
@ .17A
|
|
EID-164F28
|
EID-162F28
|
6
|
28V
C.T. @ .2A
|
14V
@ .4A
|
|
EID-164G28
|
EID-162G28
|
12
|
28V
C.T. @ .42A
|
14V
@ .84A
|
|
EID-164H28
|
EID-162H28
|
20
|
28V
C.T. @ .7A
|
14V
@ 1.4A
|
|
EID-164J28
|
EID-162J28
|
36
|
28V
C.T. @ 1.3A
|
14V
@ 2.6A
|
|
EID-164D36
|
EID-162D36
|
1.1
|
36V
C.T. @ .03A
|
18V
@ .06A
|
|
EID-164E36
|
EID-162E36
|
2.4
|
36V
C.T. @ .065A
|
18V
@ .13A
|
|
EID-164F36
|
EID-162F36
|
6
|
36V
C.T. @ .17A
|
18V
@ .34A
|
|
EID-164G36
|
EID-162G36
|
12
|
36V
C.T. @ .35A
|
18V
@ . 7A
|
|
EID-164H36
|
EID-162H36
|
20
|
36V
C.T. @ .55A
|
18V
@ 1.1A
|
|
EID-164J36
|
EID-162J36
|
36
|
36V
C.T. @ 1A
|
18V
@ 2.0A
|
|
EID-164D48
|
EID-162D48
|
1.1
|
48V
C.T. @ .023A
|
24V
@ .046A
|
|
EID-164E48
|
EID-162E48
|
2.4
|
48V
C.T. @ .05A
|
24V
@ .1A
|
|
EID-164F48
|
EID-162F48
|
6
|
48V
C.T. @ .125A
|
24V
@ .25A
|
|
EID-164G48
|
EID-162G48
|
12
|
48V
C.T. @ .25A
|
24V
@ .5A
|
|
EID-164H48
|
EID-162H48
|
20
|
48V
C.T. @ .4A
|
24V
@ .8A
|
|
EID-164J48
|
EID-162J48
|
36
|
48V
C.T. @ .75A
|
24V
@ 1.5A
|
|
EID-164D56
|
EID-162D56
|
1.1
|
56V
C.T. @ .02A
|
28V
@ .04A
|
|
EID-164E56
|
EID-162E56
|
2.4
|
56V
C.T. @ .045A
|
28V
@ .09A
|
|
EID-164F56
|
EID-162F56
|
6
|
56V
C.T. @ .11A
|
28V
@ .22A
|
|
EID-164G56
|
EID-162G56
|
12
|
56V
C.T. @ .22A
|
28V
@ .44A
|
|
EID-164H56
|
EID-162H56
|
20
|
56V
C.T. @ .35A
|
28V
@ .7A
|
|
EID-164J56
|
EID-162J56
|
36
|
56V
C.T. @ .65A
|
28V
@ 1.3A
|
|
EID-164D120
|
EID-162D120
|
1.1
|
120V
C.T. @ .01A
|
60V
@ .02A
|
|
EID-164E120
|
EID-162E120
|
2.4
|
120V
C.T. @ .02A
|
60V
@ .04A
|
|
EID-164F120
|
EID-162F120
|
6
|
120V
C.T. @ .05A
|
60V
@ .1A
|
|
EID-164G120
|
EID-162G120
|
12
|
120V
C.T. @ .1A
|
60V
@ .2A
|
|
EID-164H120
|
EID-162H120
|
20
|
120V
C.T. @ .16A
|
60V
@ .32A
|
|
EID-164J120
|
EID-162J120
|
36
|
120V
C.T. @ .3A
|
60V
@ .6A
|

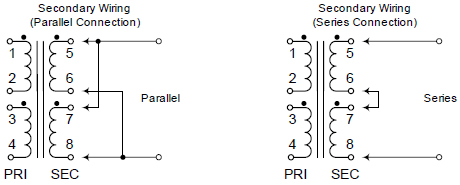

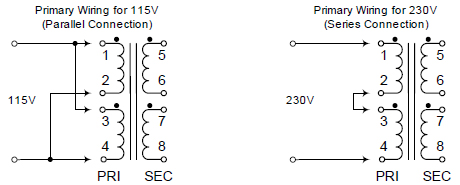

Mechanical
& Schematic Data:
|
Single
Primary - EID-164 Series |
Dual
Primary - EID-162 Series |
|
|
|
|
Confused
about phasing or
primary & secondary connections?
|
|
