OEM CONVERTER – 420VX-24X-QUAD - Quad In-Line 4 channels of current to voltage converter (transducer).





CONVERTER – 420VX-24X-QUAD, precision In-line Current-to-Voltage transducer board is an accurate, linear, and an efficient way to convert four current standards 4 to 20mA, 0 to 20mA signals to industrial standards voltages. Shown above Model A, the four output set to 0V to 10V (Hint, Jumpers B & D are install).



The CONVERTER-420VX-24X-QUAD board is designed to perform industrial standard precision current to voltage linear conversion (transducer). If used properly, it will eliminate the need for an expensive boards, which would otherwise be needed to carry out the same tasks.



The CONVERTER-420VX-24X-QUAD  is easy to install, setup and operate. If you want to do professional remote linear current measurement related functions, The CONVERTER-420VX-24X-QUAD offers the features you need. It can be mounted easily via four 0.125" mounting holes utilizing 4-40 screws.



Simply connect the board to 24V or 28V AC or DC Power supply, connect your four current sources (4-20mA) to the differential inputs and our board will convert it to four linear voltages (see tables for different output ranges).



The Quad channel current to voltage transducer module CONVERTER-420VX-24X-QUAD, converts and conditions four 4-20mA signals to four DC voltage.



The CONVERTER-420VX-24X-QUAD transducer is typically used to convert currents 4-20mA to a stable constant-voltage source. A precision instrumentation amplifier and filter combination provide an accurate, conditioned 0 to 5V or 0 to 10V DC output from a 4-20mA current input.



Other input current are available:



1 to 5mA, 10 to 50mA and 20 to 100mA

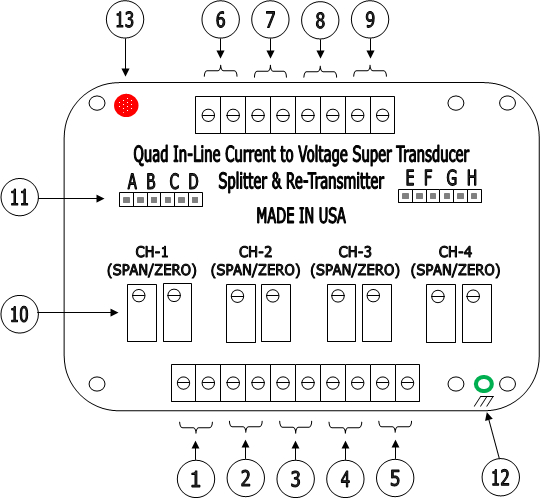

One to Four 4-20mA inputs Split/Convert to Four Outputs. Where; each channel individually has both, ZERO AND SPAN linear adjustment:















Precision Quad Current-to-Voltage Converter/Transmitter



Precise calibration with simple SPAN and ZERO adjustments:



1. Power 24V or 28V DC or  AC

2. Input 1

    Current differential input 4-20mA (Other input are available: 1-5mA, 10-50mA and 20-100mA)

3. Input 2

    Current differential input 4-20mA (Other input are available: 1-5mA, 10-50mA and 20-100mA)

4. Input 3

    Current differential input 4-20mA (Other input are available: 1-5mA, 10-50mA and 20-100mA)

5. Input 4

    Current differential input 4-20mA (Other input are available: 1-5mA, 10-50mA and 20-100mA)

6. Voltage Output 1

    Note: Available in many output voltage configuration ranges (See below tables)

7. Voltage Output 2

    Note: Available in many output voltage configuration ranges (See below tables)

8. Voltage Output 3

    Note: Available in many output voltage configuration ranges (See below tables)

9. Voltage Output 4

    Note: Available in many output voltage configuration ranges (See below tables

10. Per Channel Span and Zero calibration via multi-turn trimmer adjustment.

11. JP1 Per Channel output setting. Channel 1 A/B, channel 2 C/D, Channel 3 E/F and channel 4 G/H

12. Chassis ground wire connection (optional)

13. LED Power Indicator







QCVC (Quad current to voltage converter) SMT Model Shown above



Outputs configurations:

Model A:



Input (mA)

Output (VDC)

JP1

4 to 20

0 to 5

A

4 to 20

0 to 10

B



Model B:



Input (mA)

Output (VDC)

JP1

4 to 20

0 to -5

A

4 to 20

0 to -2.5

B



Model C:



Input (mA)

Output (VDC)

JP1

4 to 20

0 to 1

A

4 to 20

0 to 2

B



Model D:



Input (mA)

Output (VDC)

JP1

4 to 20

0 to -1

A

4 to 20

0 to -2

B



Model E:



Input (mA)

Output (VDC)

JP1

4 to 20

0 to 3

A

4 to 20

0 to 3.3

B



Model F:



Input (mA)

Output (VDC)

JP1

4 to 20

0 to -3

A

4 to 20

0 to -3.3

B



Model G:



Input (mA)

Output (VDC)

JP1

4 to 20

-2.5 to 2.5

A

4 to 20

-5 to 5

B



Model H:



Input (mA)

Output (VDC)

JP1

4 to 20

2.5 to -2.5

A

4 to 20

5 to -5

B



Model I:



Input (mA)

Output (VDC)

JP1

4 to 20

-0.5 to 0.5

A

4 to 20

-1 to 1

B



Model J:



Input (mA)

Output (VDC)

JP1

4 to 20

0.5 to -0.5

A

4 to 20

-1 to 1

B



Model X:



Input (mA)

Output (VDC)

JP1

4 to 20

0 to 4.6

A

4 to 20

0 to 6.4

B





CONVERTER-420VX-24X-QUAD Features



  • QUAD voltage outputs

  • QUAD Output Zero calibration via multi-turn trimmer adjustment.

  • QUAD Output Span calibration via multi-turn trimmer adjustment.

  • Power via 24V or 28V DC pr AC

  • Converts four 4-20mA analog current to four output voltages

  • Can be customized to accommodate your output voltages requirement.

  • Industrial Standard inputs of 4-20mA makes the CONVERTER ideal for remote sensing applications.

  • Linear voltage output.

Specifications

  • Input currents                            4-20 mA  (optional 1-5 mA, 10-50 mA and 20-100 mA)

  • Input Impedance                       250 Ohms

  • QUAD Output voltage Model A              0 to 5V, 0 to 10V

  • QUAD Output voltage Model B              0 to -5V, 0 to -2.5V

  • QUAD Output voltage Model C              0 to 1V, 0 to 2V

  • QUAD Output voltage Model D              0 to -1V, 0 to -2V

  • QUAD Output voltage Model E              0 to 3V, 0 to 3.3V

  • QUAD Output voltage Model F              0 to -3V, 0 to 3.3V

  • QUAD Output voltage Model G              -2.5 to 2.5V, -5 to 5V

  • QUAD Output voltage Model H              2.5 to -2.5V, 5 to -5V

  • QUAD Output voltage Model I              -0.5 to 0.5V, -1 to 1V

  • QUAD Output voltage Model J              0.5 to -0.5V, 1 to -1V

  • QUAD Output voltage Model X              0 to 4.6V, 0 to 6.4V

  • PCB material                             FR4

  • Freq. Response                          L.F. 2KHz

  • Max power consumption              0.25W

  • Storage temperature                  Between 40 to 70 [F]

  • Operating temperature                -5 to 125 [F] (-20 to 52°C) @ 95% RH

  • Low board DC voltage                 24VDC

  • Power source                            24V @ 20mA, filtered

  • Adjustment                               Via trimmers Zero and Span

  • Mounting                                  Four 0.125” (3.1mm) holes with center distance of 1.1"

  • Board dimensions                       3.85" * 3.7"

  • Manufactured                           100% in USA

Pricing



* The OEM products described herein, Prices, SKU#, P# are subject to change at any time without notice, including but not limited to products features, specifications, and designs.

Description

SKU #

Price

CONVERTER-Q420VX-24X QUAD current (4-20mA) to voltage 0 to 5 or 0 to 10V transducer. with terminal-block (6 positions). Model A

EID-CONVER-TER-Q420VX-24XA

$387.93

CONVERTER-Q420VX-24X QUAD current (4-20mA) to voltage 0 to -5 or 0 to -2.5V transducer. with terminal-block (6 positions). Model B

EID-CONVER-TER-Q420VX-24XB

$402.54

CONVERTER-Q420VX-24X QUAD current (4-20mA) to voltage 0 to 1 or 0 to 2V transducer. with terminal-block (6 positions). Model C

EID-CONVER-TER-Q420VX-24XC

$402.54

CONVERTER-Q420VX-24X QUAD current (4-20mA) to voltage 0 to -1 or 0 to -2V transducer. with terminal-block (6 positions). Model D

EID-CONVER-TER-Q420VX-24XD

$402.54

CONVERTER-Q420VX-24X QUAD current (4-20mA) to voltage 0 to 3 or 0 to 3.3V transducer. with terminal-block (6 positions). Model E

EID-CONVER-TER-Q420VX-24XE

$402.54

CONVERTER-Q420VX-24X QUAD current (4-20mA) to voltage 0 to -3 or 0 to -3.3V transducer. with terminal-block (6 positions). Model F

EID-CONVER-TER-Q420VX-24XF

$402.54

CONVERTER-Q420VX-24X QUAD current (4-20mA) to voltage -2.5 to 2.5 or -5 to 5V transducer. with terminal-block (6 positions).    Model G

EID-CONVER-TER-Q420VX-24XG

$402.54

CONVERTER-Q420VX-24X QUAD current (4-20mA) to voltage 2.5 to -2.5 or 5 to -5V transducer. with terminal-block (6 positions).    Model H

EID-CONVER-TER-Q420VX-24XH

$402.54

CONVERTER-Q420VX-24X QUAD current (4-20mA) to voltage -0.5 to 0.5 or -1 to 1V transducer. with terminal-block (6 positions).    Model I

EID-CONVER-TER-Q420VX-24XI

$402.54

CONVERTER-Q420VX-24X QUAD current (4-20mA) to voltage 0.5 to -0.5 or 1 to -1V transducer. with terminal-block (6 positions).    Model J

EID-CONVER-TER-Q420VX-24XJ

$402.54

CONVERTER-Q420VX-24X QUAD current (4-20mA) to voltage 0 to 4.6 or 0 to 6.39V transducer. with terminal-block (6 positions). Model X

EID-CONVER-TER-Q420VX-24XX

$402.54

  •
