Welded - Assembled "Contempra" Rapid Racks (EID-C2RR Series)



C2RR Welded & Assembled Rack

Features:

  • Heavy duty - welded rack (1,500 lb even load rating)...

  • Standard 19” panel width (23” overall)...

  • Choice of two stock depths:

    1. usable depth of 21.63" (23.63” overall)

    2. usable depth of 29.50" (31.50" overall)

  • Unit is shipped complete (NO ASSEMBLY REQUIRED) with removable side panels (1/4 turn latches), 4 infinitely adjustable - combination rack mount rails (Full EIA hole centers - 5/8 - 5/8 - 1/2 inch spacing), one solid flush mount door, solid top and 4 leveling feet...

  • Heavy duty: 14 gauge steel frame, 16 gauge side panels.

  • Rails are made of 10 gauge zinc plated steel...

  • Recommended maximum weight (C2F247836 tested) - 1,500 pounds...

  • Finished in a rugged, textured powder paint finish.

  •

    C2RR Line Art



    23.63" Deep models:
    Usable Depth = 21.63"

    Part Number

    1-99

    Color

    Paint Texture

    Panel Height

    Overall Dimensions

    Wt. lbs.

    Inches

    Units

    A

    B

    C

    H

    EID-C2RR194223BK1
    EID-C2RR194223CG1



    Black
    Gray/Beige

    Textured
    Textured

    42

    24

    49.31

    23

    23.63

    42.06

    205

    EID-C2RR196323BK1
    EID-C2RR196323CG1



    Black
    Gray/Beige

    Textured
    Textured

    63

    36

    70.31

    23

    23.63

    63.06

    260

    EID-C2RR197023BK1
    EID-C2RR197023CG1



    Black
    Gray/Beige

    Textured
    Textured

    70

    40

    77.31

    23

    23.63

    70.06

    295

    EID-C2RR197823BK1
    EID-C2RR197823CG1



    Black
    Gray/Beige

    Textured
    Textured

    78

    45

    86.06

    23

    23.63

    78.81

    330



    31.5" Deep models:
    Usable Depth = 29.50"

    Part Number

    1-99

    Color

    Paint Texture

    Panel Height

    Overall Dimensions

    Wt. lbs.

    Inches

    Units

    A

    B

    C

    H

    EID-C2RR194231BK1
    EID-C2RR194231CG1



    Black
    Gray/Beige

    Textured
    Textured

    42

    24

    49.31

    23

    31.5

    42.06

    218

    EID-C2RR196331BK1
    EID-C2RR196331CG1



    Black
    Gray/Beige

    Textured
    Textured

    63

    36

    70.31

    23

    31.5

    63.06

    280

    EID-C2RR197031BK1
    EID-C2RR197031CG1



    Black
    Gray/Beige

    Textured
    Textured

    70

    40

    77.31

    23

    31.5

    70.06

    315

    EID-C2RR197831BK1
    EID-C2RR197831CG1



    Black
    Gray/Beige

    Textured
    Textured

    78

    45

    86.06

    23

    31.5

    78.81

    355



    IN STOCK! Ready To Install RAPID RACKS...

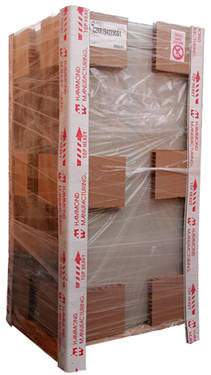

    Shipped assembled on it's own skid for handling ease & protection!


    Accessories:

    Casters

    1425 C2RR Caster Set

    • No drilling required...

    • Mounts into existing holes in “EID-C2RR” type racks...

    • Swivel, ball bearing units, hard composition type wheels...

    • Adds only 0.75” to height of cabinet by fitting up inside base of rack...

    • Sold in sets of 4.


    Part Number

    1-9 10-99

    Mfg. Specified
    Capacity
    (set of 4)

    Wheel Diameter
    (Inches)

    Height Added To
    Rack
    (Inches)

     EID-1425B



    360 lbs.

     3"

    0.75"

     EID-1425BM



    700 lbs.

    3"

    0.75"

     EID-1425BH



    1050 lbs.

    3"

    0.75"


    General Accessory

    • Extra Panel Rails

    • Tops solid, vented & Raised - note: existing solid top must be removed

    • Fan Tops 4" or 10" Fans - note: existing solid top must be removed

    • Doors solid, louvered & plexi

    • Aluminum rack panels

    • Steel rack panels

    • Formed steel rack panels

    • Ventilated & Access Panels Louvers, slots, baffles etc.

    • Doors & Chassis - Panel Mount

    • Cable Organizing

    • Shelves - Panel Mount

    • Shelves & Slides - Dual Vertical Rail Mount

    • Keyboard Shelves & Drawers

    • Rack mount power bars

    • Cooling Accessories

    • Vertical rack mount power bars

    • Blowers

    • Fan Trays

    • Mounting hardware

    Notes:

    • All Dimensions in inches

      •
