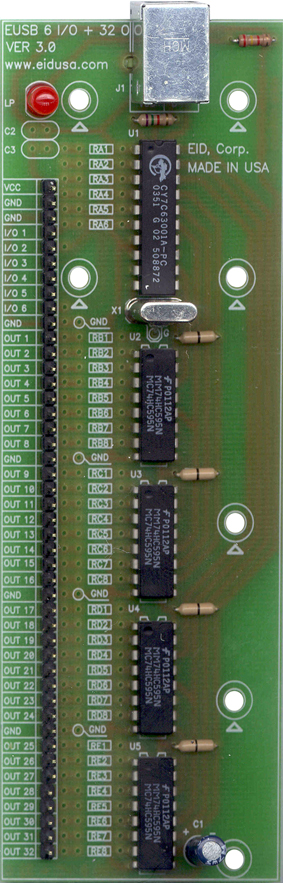

EUSB to 6 I/O + 32 Outputs Kit



EID's universal serial bus (EUSB) to 6 I/O kit (6 I/O read or write) plus 32 outputs is an educational electronics kit that allows you to connect your personal computer (PC) universal serial port to 6 Input/output and additional 32 outputs pins. The kit is based on Cypress integrated circuit (IC), the CY7C63001.



Note: The CY7C63001 IC is Universal Serial Bus (USB) RISC type Micro-controller. It conforms to USB 1.5 Mbps specification, version 1.1. See USB specifications at www.usb.org for more details, or click here to download the the CY7C63001 chip data-sheet.



No need for external Power supply! The board is powered directly from your PC.






Kit mounting



This kit includes on board pre-installed free EUSB firmware!






EUSB Basics






Description and SKU#

Price


EUSB to 6 I/O & 32 Outputs Kit

EID-K-EUSB-6PIO-32O-ASM   Fully assembled

EID-K-EUSB-6PIO-32O-PCB   PCB Only

EID-K-EUSB-6PIO-32O-KIT    Kit

EID-K-EUS-BS-LIB1S   Software (Library only)



105.00

27.90

93.75

18.00



EUSB A to B Cables

This cable is used to connect the EUSB port to the EUSB peripheral. A male to B male.



EID-C-USB-32-930  3’

EID-C-USB-32-931  6’

EID-C-USB-32-932  10’

EID-C-USB-32-933  15’









9.99

10.99

11.99

15.99



USB Complete (Second Edition) by J. Alexson

EID-K-BOOK-USB-001  Regular price

EID-K-BOOK-USB-0KC  w/ kit purchase



NEW! We carry technical books...

LEARN & SAVE!



This is a "must have" book for any student or engineer. Therefore, an additional 10% off for student with student ID!





49.95

33.33





  •
